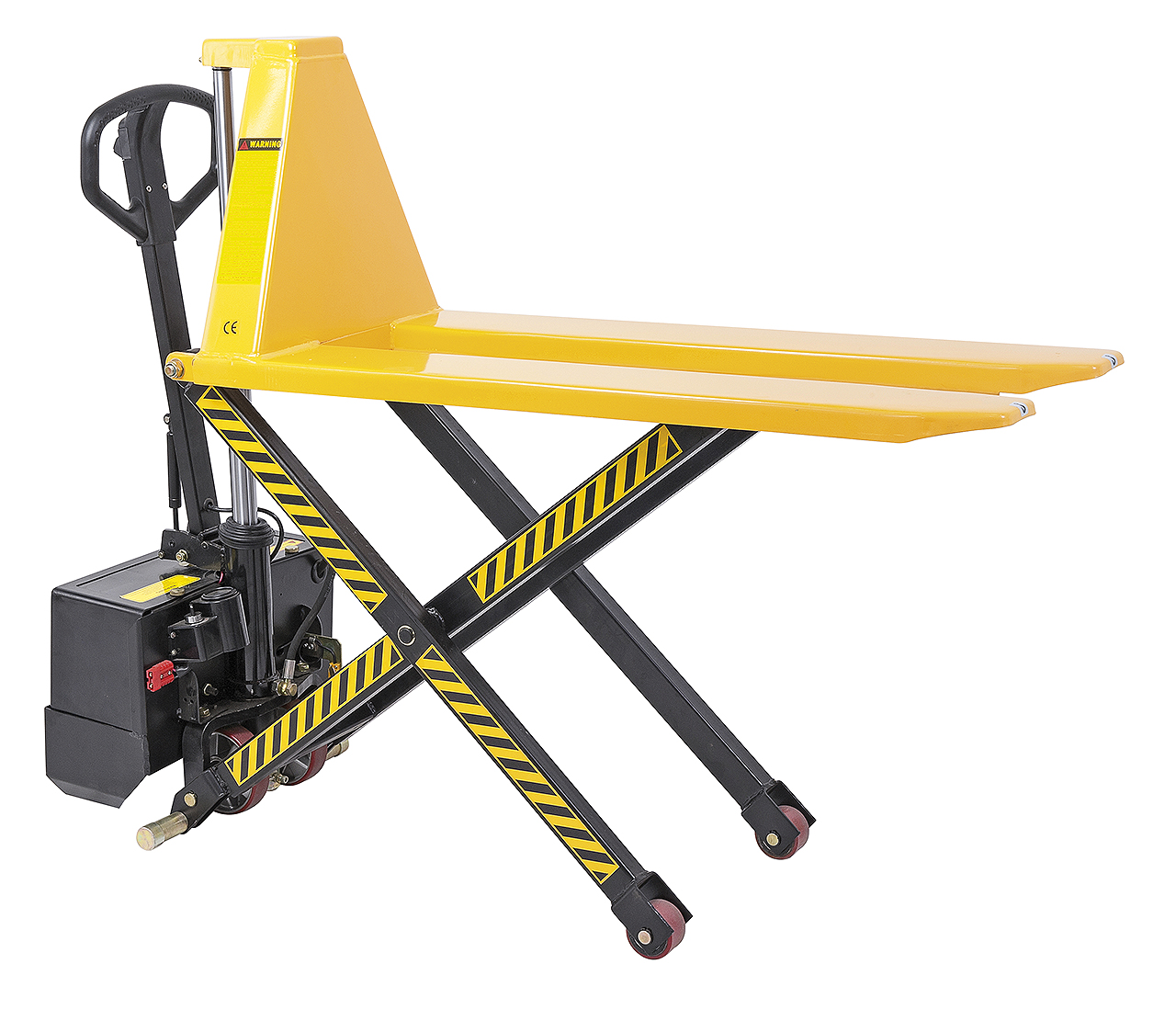

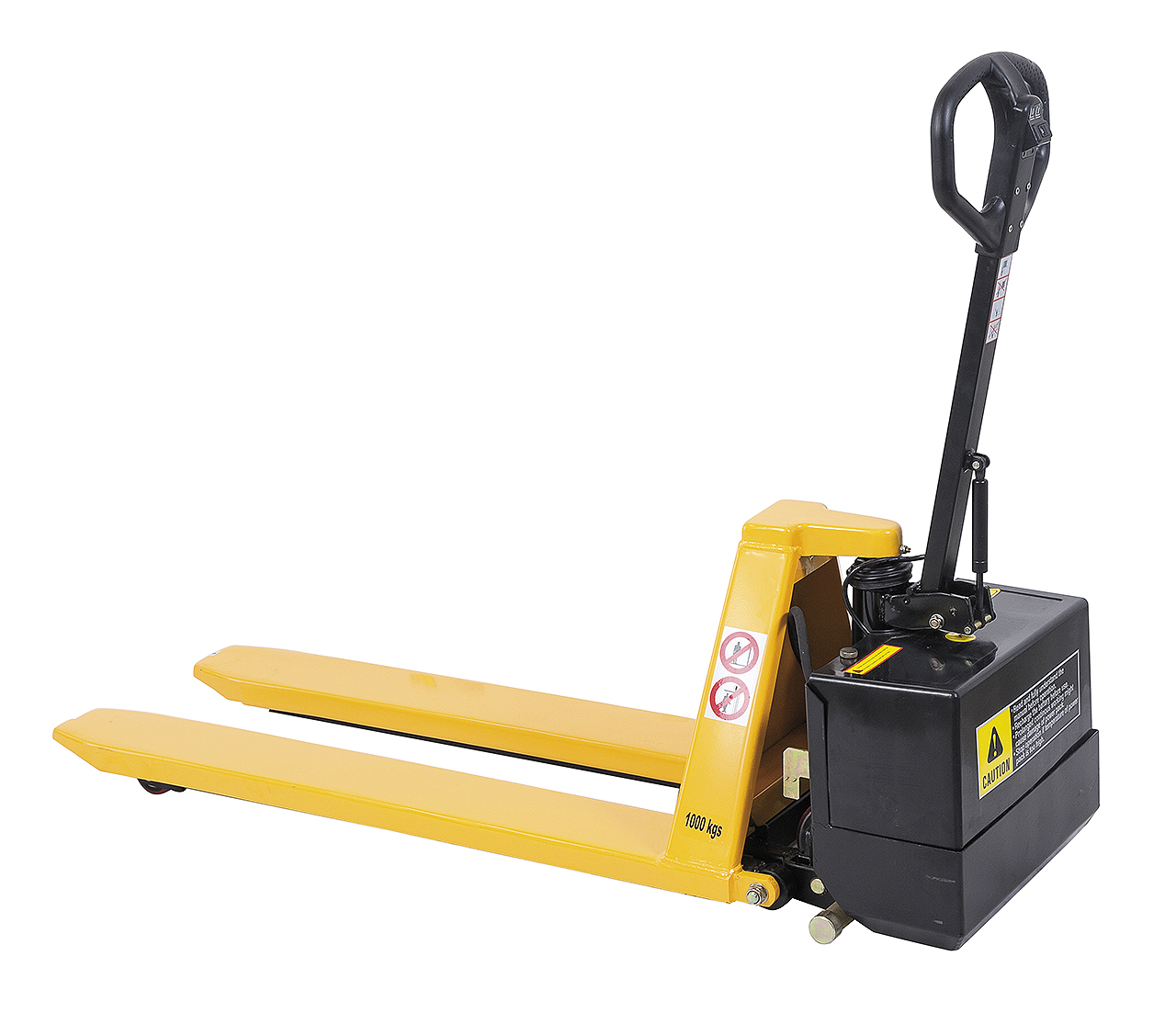

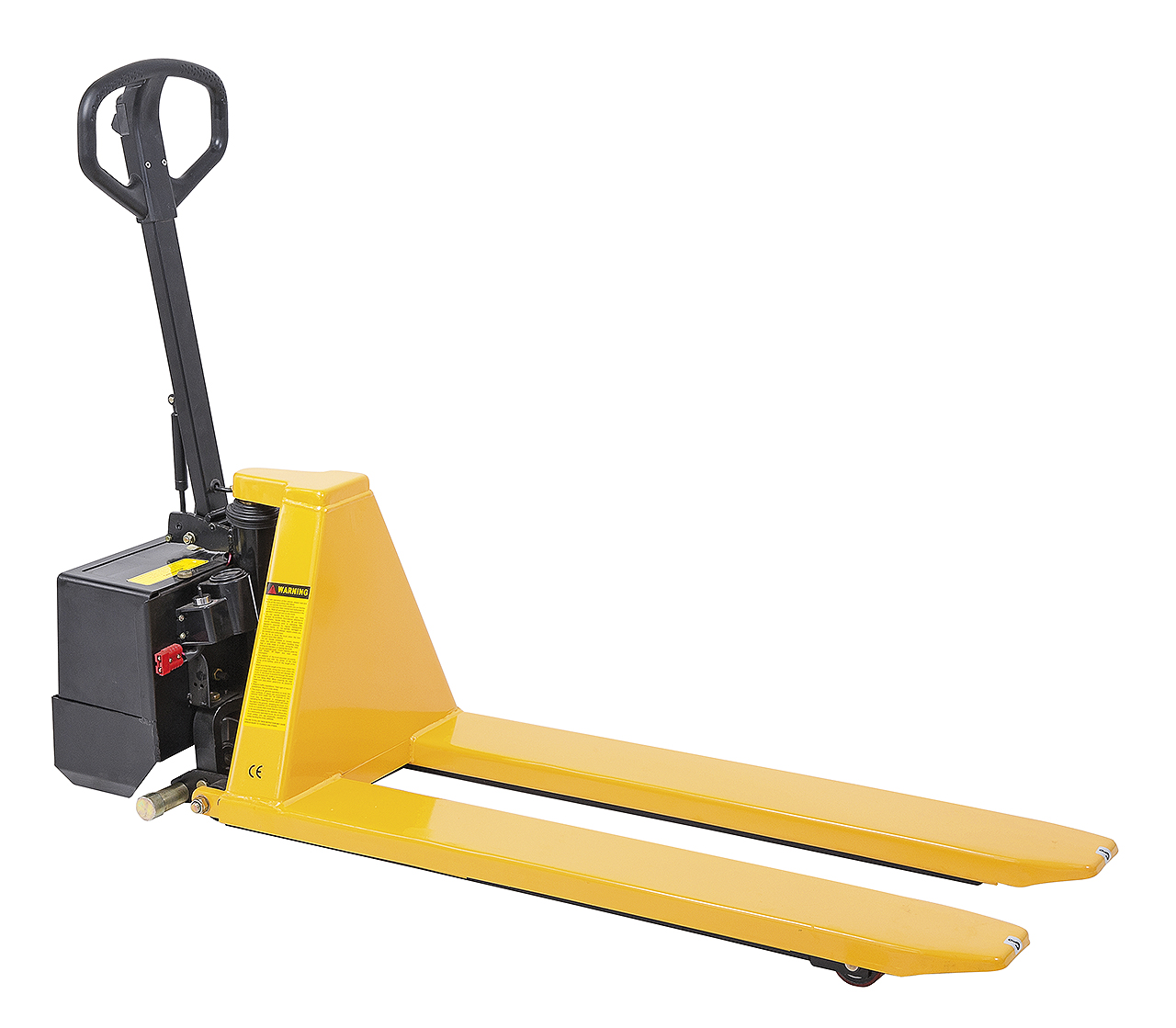

Bernardo Elektrischer Scherenhubwagen SHW 1000 ET
Produktnummer:
07-1020-bernardo
Produktinformationen "Bernardo Elektrischer Scherenhubwagen SHW 1000 ET"
Bernardo Technische Daten
|
Capacity |
1000 kg |
|
Max. Fork Height |
800 mm |
|
Min. Fork Height |
85 mm |
|
Fork Overall Width |
520 mm |
|
Fork Lenght |
1140 mm |
|
Dimension |
|
|
C |
600 mm |
|
E |
530 mm |
|
H |
1250 mm |
| Battery | 70/12 Ah/V |
| Battery Charger | 8/12 Ah/V |
|
Net Weight |
140 kg |
Bernardo Funktionen
- Character: Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table
- Quick-lift as standard with automatic transfer to normal lifting with loads over 150 kg
- Automatic descendng speed control by a uniquely hydraulic valve, the decending speed always keeps same regardless the truck with or without load. It will prevent cargo damage from fast descending
- Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420 mm, to ensure maximum stability and optimum braking
- Ergonomic warm handle offers you simple and comfortable operation
- Heavy duty design: 4 mm steel plate fork and larger lift piston ensure the truck to reach rated capacity
- Conforms to EN1757-4
Herstellername: PWA HandelsgesmbH
Herstelleradresse:
Nebingerstraße 7a 4020 Linz | Austria
