Bernardo Technische Daten

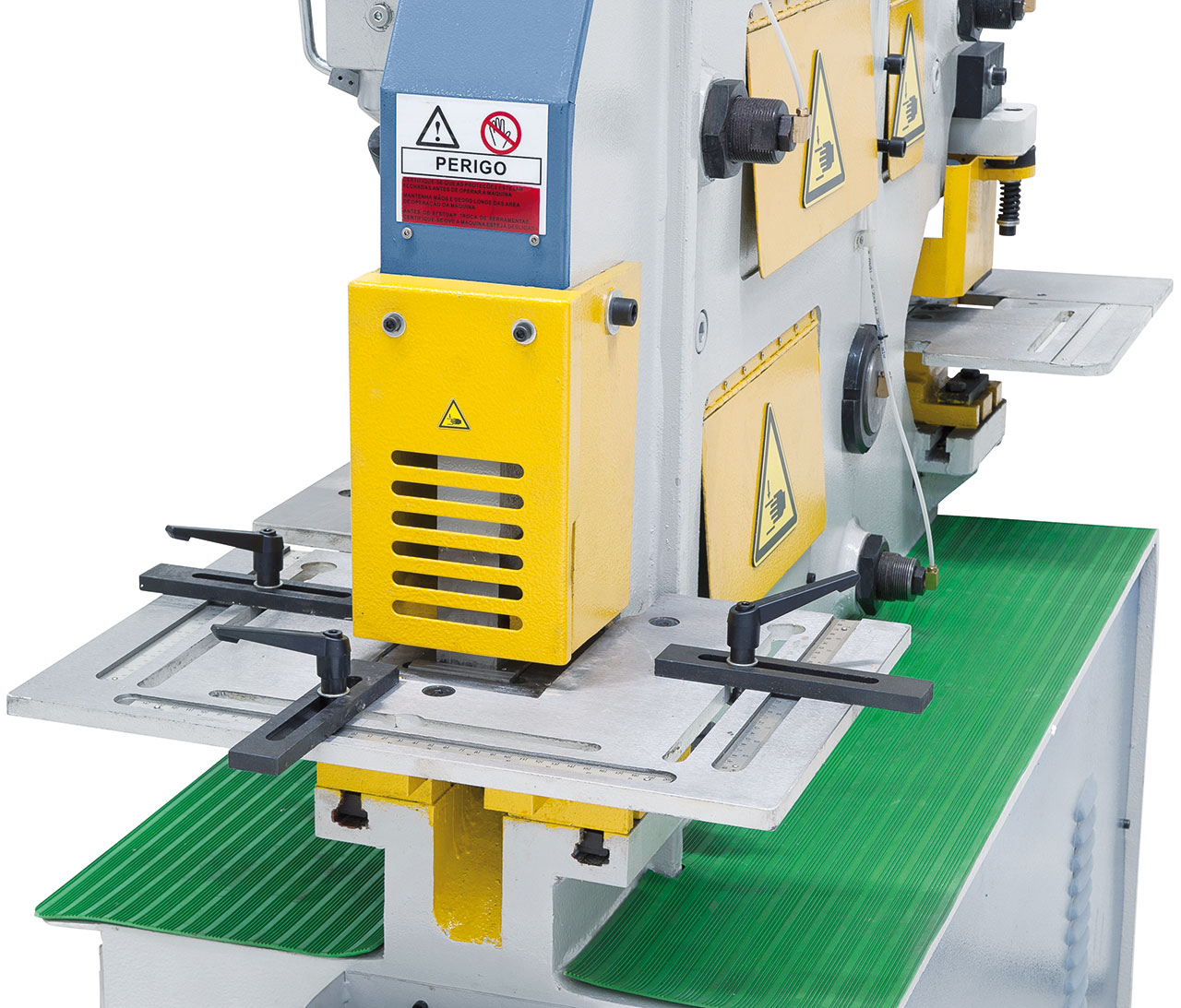

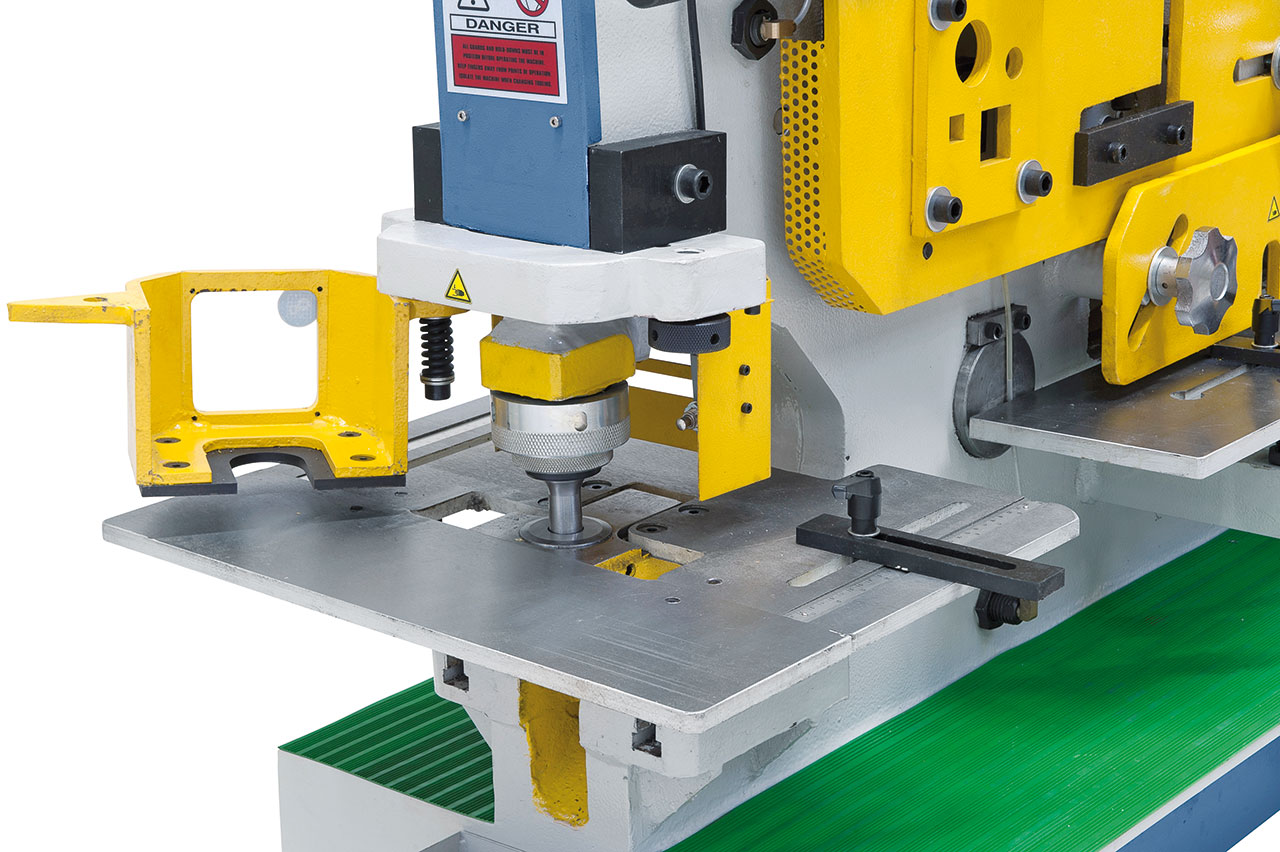

Stanzen |
|
Stanzkraft |
55 Tonnen |
Max. Stanzleistung |
15 mm |
Durchmesser x Stärke |
24 mm |
Hublänge |
60 mm |
Hubzahl (20 mm Hub) |
8 cpm |
Ausladung |
200 mm |
Max. Lochgröße (Standard) |
24 mm |
Max. Lochgröße* |
Φ 40 mm |
Arbeitshöhe |
930 mm |

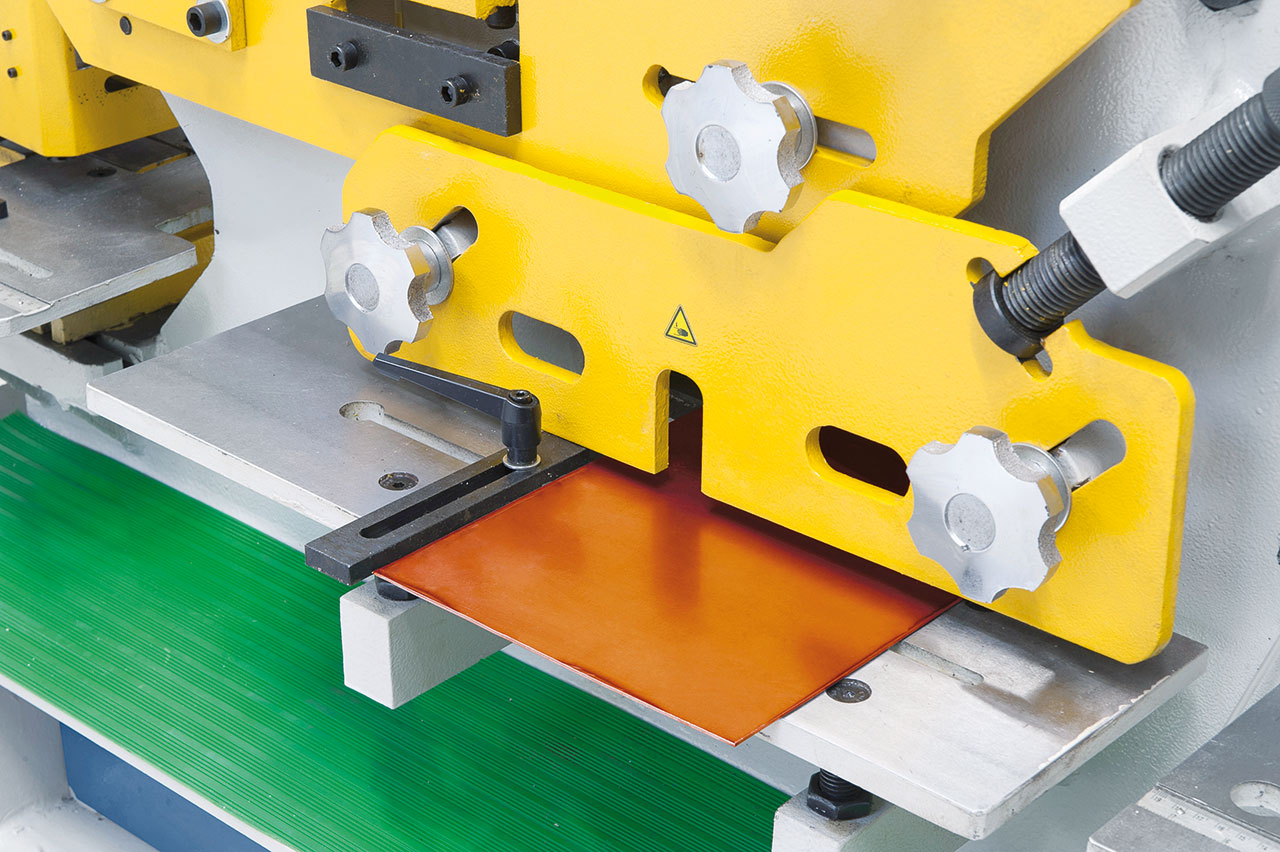

Flachstahl-Station |
|
Flachstahl max. Dicke |
15 mm |
Flachstahl max. Breite |
330 mm |
Länge der Messer |
318 mm |
Winkelprofil |
7° |
Arbeitshöhe |
945 mm |

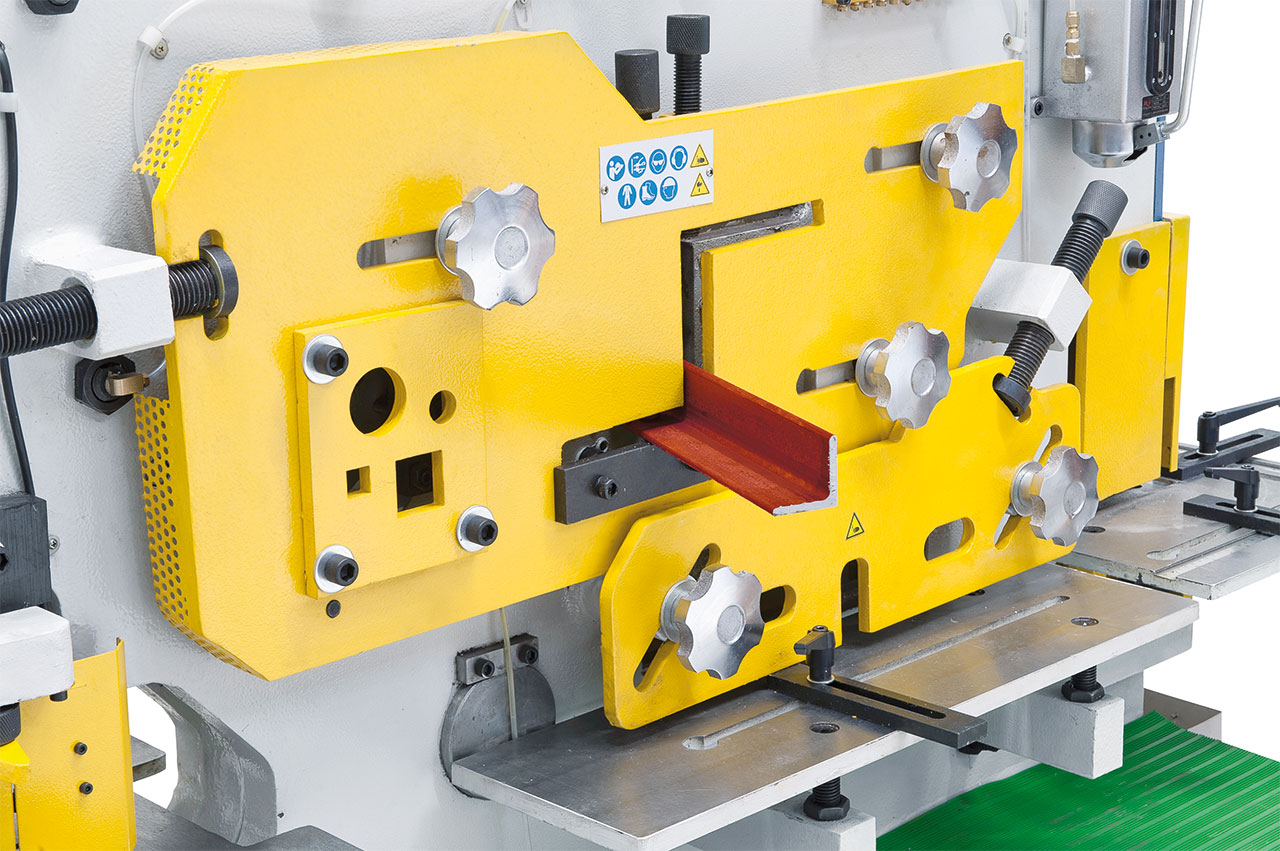

Profilstahl-Station |
|
90° |
120 x 120 x 12 mm |
45° |
60 x 60 x 6 mm |
Arbeitshöhe |
1100 mm |
U-profile/ I-profile* |
100 x 50 x 5 / 100 x 50 x 5 mm |
T-profile* |
120 x 120 x 12 mm |
50 x 50 x 5 mm |
|
Stabstahl-Schere |
|
Rundprofil |
40 mm |
Vierkantprofil |
35 x 35 mm |
Arbeitshöhe |
1125 mm |
Ausklinkstation |
|
Materialstärke |
15 mm |
Breite |
330 mm |
Rechteckausklinker |
57 x 100 mm |
Dreieckausklinker |
4 x 4 x 6 mm |
Arbeitshöhe |
945 mm |
Motorleistung |
4 kW |
Maschinenabmessung (B x T x H) |
1320 x 590 x 1620 mm |
Gewicht ca. |
1400 kg |
* optional |
|
